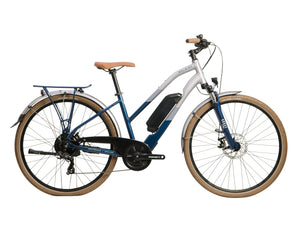

Raleigh Array Electric Bike
Tax included.
FEATURES
..-
Accessories
- mudguards - set: Full mudguards
- chainguard: Chain guard for Suntour system
- rear carrier: Alloy Rack
- lighting: Front and rear lights
- extras: Kick Stand, charger
-
Components
- stem: Raleigh alloy ahead stem
- handlebars: Comfort XLC Handlebar Black
- grips: Comfort Grip
- saddle: Velo comfort saddle
- seatpost: Alloy seatpost 31.6
- seat clamp: 34.9 mm Quick Release Alloy Clamp
-
Electrical
- motor: Suntour e25 rear wheel hub motor
- battery: Suntour Frame Mount 400wh
- display: Suntour multi-function LED display
- sensor: Suntour torque sensor
- range: up to 100km from Eco mode
-
Frameset
- frame: Aluminium 7005
- rear derailleur dropout: Alloy Replaceable Hanger
- suspension fork: Suntour Nex suspension fork 63mm travel
- headset: Low Stack semi integrated
-
Groupset
- shift levers: Shimano 7 speed
- brake levers: Tektro T280 mechanical disc brakes
- rear derailleur: Shimano 7 speed
- front brake: Tektro T280 mechanical disc brakes
- rear brake: Tektro T280 mechanical disc brakes
- chainwheel: 42T for Suntour system
- crankset: SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor
- bottom bracket: SUNTOUR, BB8-XCT-SQS122E-73-CBT
- freewheel/cassette: Shimano HG200 12-28
- chain: KMC 7 speed
- pedals: Comfort Pedals with Anti Slip
-
Wheelset
- front wheel: Alloy Double wall, 36 spoke, 700c on Alloy disc hub
- rear wheel: Double wall rim 36 hole 700c on Suntour motor hub
- front hub: Alloy 36 hole black disc QR
- rear hub: Suntour Motor Hub
- rims: Double Wall rim 36 hole 700c
- front tyre: Vee Rubber, Zient, 700C x 47, with reflective stripe
- rear tyre: Vee Rubber, Zient, 700C x 47, with reflective stripe
- inner tubes: 700Cx40 car type
